Auto Glass자동차유리 분야에서 SYP는 중국 최대의 생산자입니다. 현재 상해GM, 상해폭스바겐, 미국의 포드, 프랑스의 PSA 푸조-시트로엥, 한국의 현대자동차에 주요 공급하고 있습니다. SYP에서 생산한 차량유리 원판은 주로 MTA, MTB 등급으로 구분됩니다. MTA는 주로 차량 앞면과 뒷면에 사용하고, MTB는 차량 측면유리에 사용합니다.
- PG유리의 특징
- 낮은 가시광선 투과성
- 방사열 차폐, 자외선 흡수
- 내부 가림효과
- 규격
- 두께: 2 - 12㎜ ( 5/64"- 7/16" )
- 최대크기: 3,300 × 6,500㎜ ( 130" - 256" )
- 최소크기: 500 × 700㎜
- 색상
- 투명 / F Green / Blue / Gray / Black

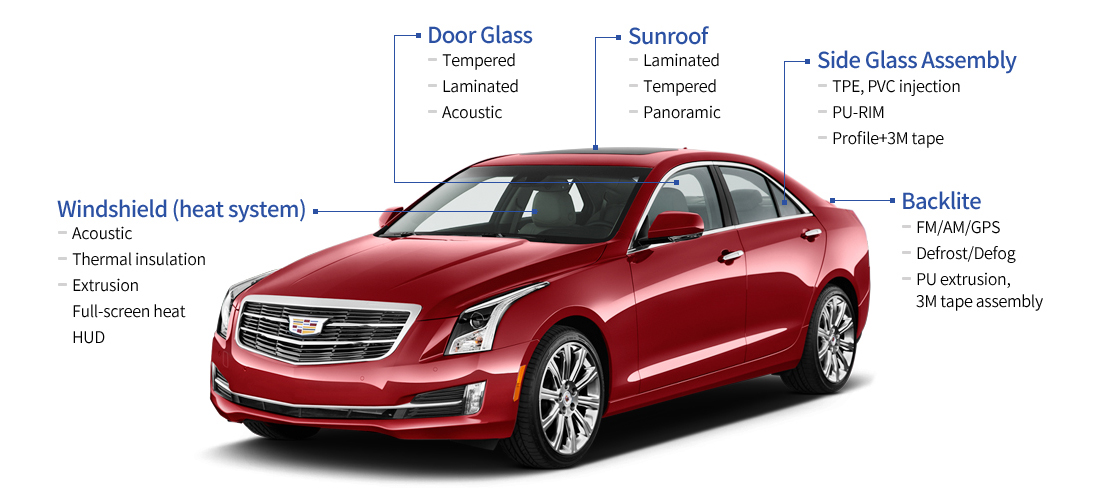

Main business
Main Vehicles
-
Volkswagen
Santana -
Volkswagen
Gran santana -
Volkswagen
Passart -
Volkswagen
Lamando -
Volkswagen
Tiguan L -
Volkswagen
Teroment -
Škoda Auto
Rapid Spaceback -
Škoda Auto
Superb -
Škoda Auto
Rapid -
Škoda Auto
Octavia -
Chevrolet
Trax -
Chevrolet
New Lova -
Chevrolet
New sail -
Buick
Encore -
CITROËN
C5 -
Chevrolet
RX5 -
MG Motor
ZS -
KIA
KIA KX5 -
KIA
KIA K2 -
KIA
KIA K5
Special





Equipment-Laminated Workshop

Tiffin Bending Furnace
- High capacity: 510pcs/12h
- Good thermal insulation and energy consumption saving


Grinding

Printing

Machine

Machine

Grinding

Assembly


Inspection

Machine

Loading

Machine

Auto Test
The backlite production line achieves automatic control from auto loading until resistor test for unloading during the whole process.
Equipment-Tempered Backlite

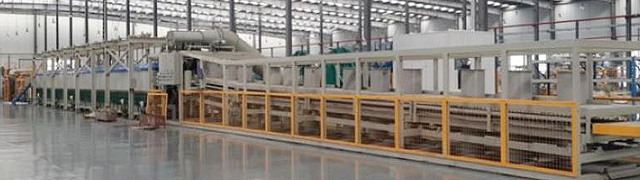

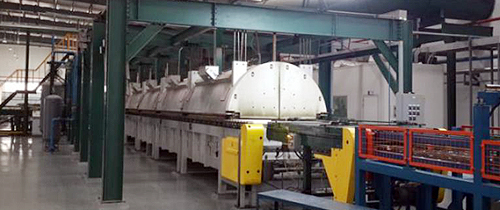

GLASSTECH Tempering Furnace
- 3h quick changeover with 30% efficiency increase
- High capacity: max 2066pcs/12h
- Advanced online test function
- Annual capacity: backlite-1million pcs, door glass-2.5million pcs

Machine

(cutting, grinding, drilling)

tempering Furnace
The door glass production line uses roller bendingfor forming with high efficiency and strong cost competitiveness.

Truck & Bus
- Gravity bending oven for bus/truck
- Bus Windshield-big size
- Deep-bending windshield
- 2,800 × 1,900㎜
Typical cases
Automotive

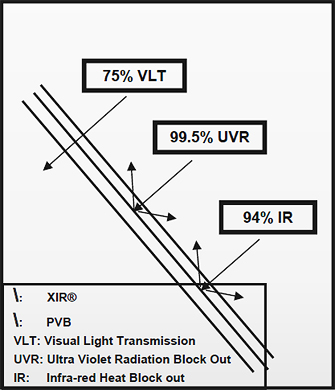

Coating IG Glass
- Coating IG glass of SYP
- Keep the same clear vision and keep interior fresh and cool
- Interior Temperature is reduced by 3~7 degree Centigrade
- Cooling rate of Engine can be minimized by from 30%~40%
- Increase conform
- Un-easy to oxidize and fade

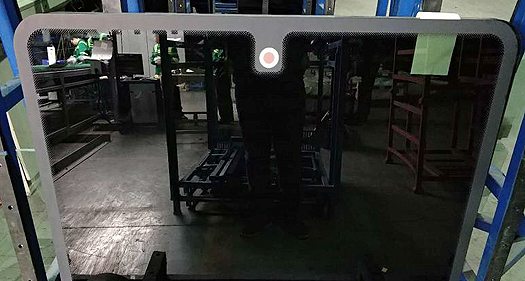

Railway

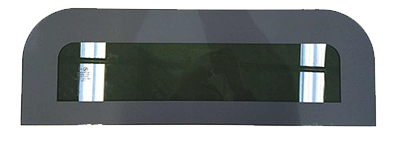

Product display

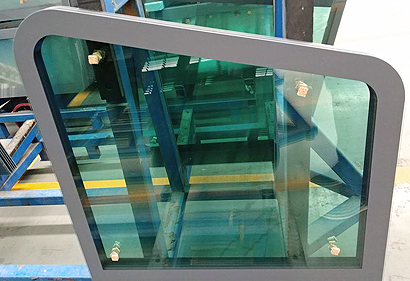

Flat glass shaped rounded corners, etc. Specifications can be provided according to customer requirements

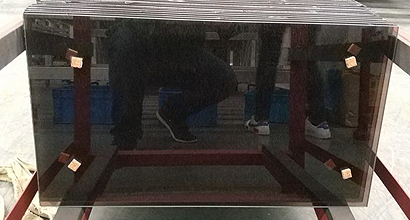

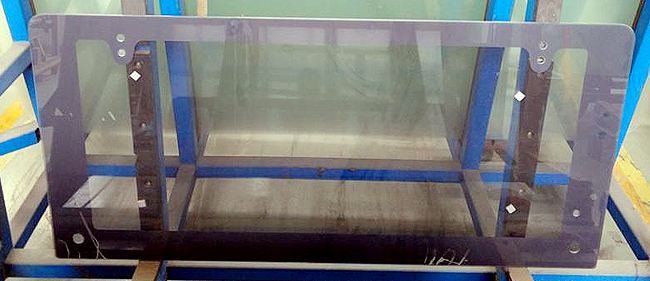

Moveable house
Moveable house & School bus

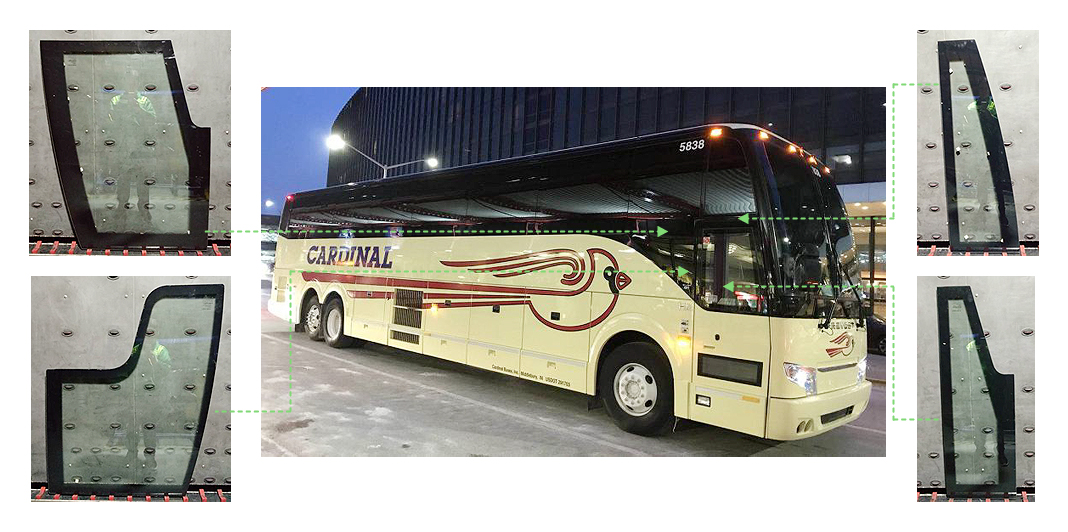

Bus

Truck

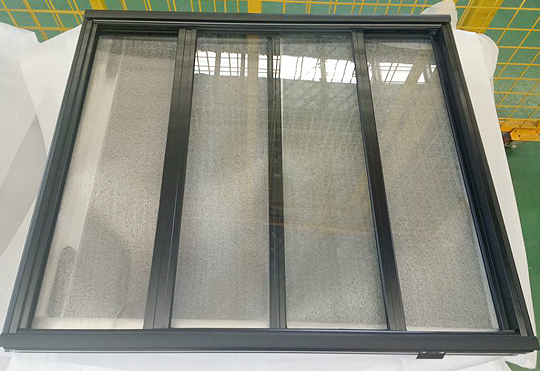

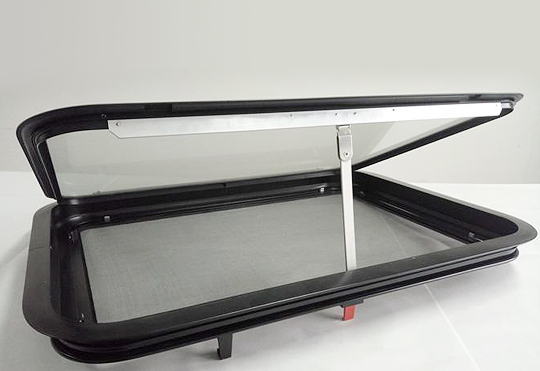

Frame Assembly



- the window slide

- hidden sliding type
Technology
Process Design Technology
-
Transform from 3D to 2D
Point Cloud Heating & Printing Line -
Heating Line Simulation
By applying the electro-thermal coupling analysis, we use electricthermal conversion and heat conduction theories to simulate defrost effect for backlite in order to optimize our design.
-
Backlite Process Ability
Min Radius: 138㎜
Max Arch Height: 196㎜ -
Backlite Deep-Process Ability
First Domestic Forming Process for Eccentricity Sphere Covered with sheet medal
Quality assurance

Process Control Guarantee
In order to ensure the process quality control, we use the requirements of IATF 16949 to monitor the product manufacturing process by using the management methods like VDA/QSB
- Quality requirements and control plan
- Process control means Tooling
- Inspection equipment and error prevention
- GP12
- Quick response
- Defect mode analysis
- Certification

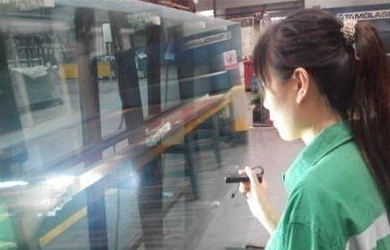

Quality control - Test of product size

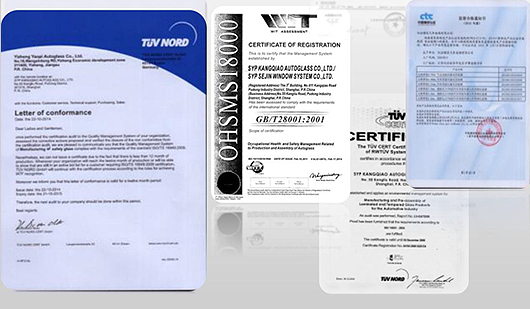

Certification
We have gained recognition from National Safety Glass Test Center and SAIC GM and perform various performance tests and type tests on our finished autoglass products. We can also conduct all test projects required by 3C, ECE, DOT and gained certification from the mentioned centers.
Management System
- ISO/TS16949
- Q1-2002
- SGM QSB
- VDA6.1

System Certificate
- EU ECE R43
- Australia AS2080
- ANSI DOT
- China GB9656 CCC
